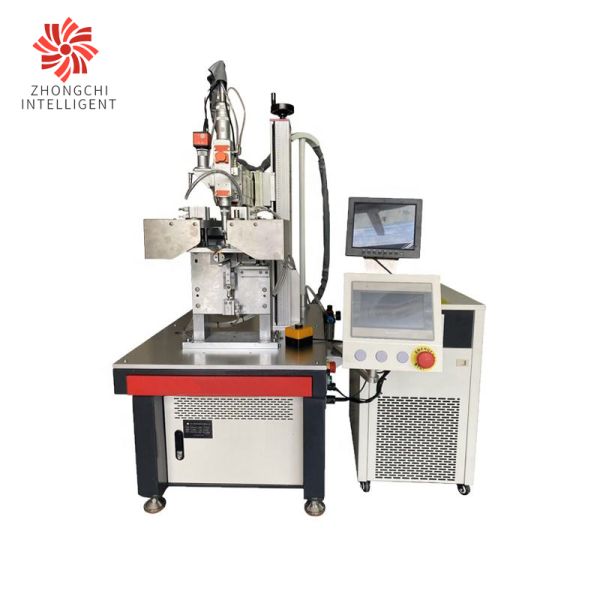

Customized Fiber Laser Welding Machine For Stainless Steel Fiber Laser Welder Laser Soldering Machine
Product Description of Fiber Laser Continuous Welding Machine
Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding.
Features of Fiber Laser Continuous Welding Machine
1. Small, beautiful and smooth weld seam, no pores, high weld depth ratio and high welding quality, the toughness after welding is comparable to that of the parent material.
2. Simple operation, large laser power, high efficiency, no consumables, long-term processing is possible;
3. Spot welding, butt welding and precision welding can be realized for thin-walled materials and precision parts;
4. Obvious advantages in special-shaped welding, splicing welding and spot welding, large laser power is sufficient to weld metals that is not easily to be melted such as gold, silver and copper. It can weld small and delicate geometric areas.
Specifications of Fiber Laser Continuous Welding Machine
| Laser Model | LRL-LX1500W/LRL-LX2000W/LRL-LX2500W |
| Power | 1500W/2000W/2500W(Optional) |
| Output Power Stability | <3% |
| Center Wavelength | 1080±5nm |
| Way of Working | Continuous Working |
| Red Light | Provided |
| Power Adjustment Range | 10-100% |
| Power Instability | ≤2% |
| Minimum Spot | 0.2mm |
| Fiber Length | 20m |
| Cooling Mode | Water Cooling |
| Cooling Water Temperature | 20-25°C |
| Electricity Demand | 220V-240V AC 50Hz/60Hz |
| Working Temperature | 10~40°C |
| Working Environment Humidity | ≤95% |
Applications of Fiber Laser Continuous Welding Machine
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
