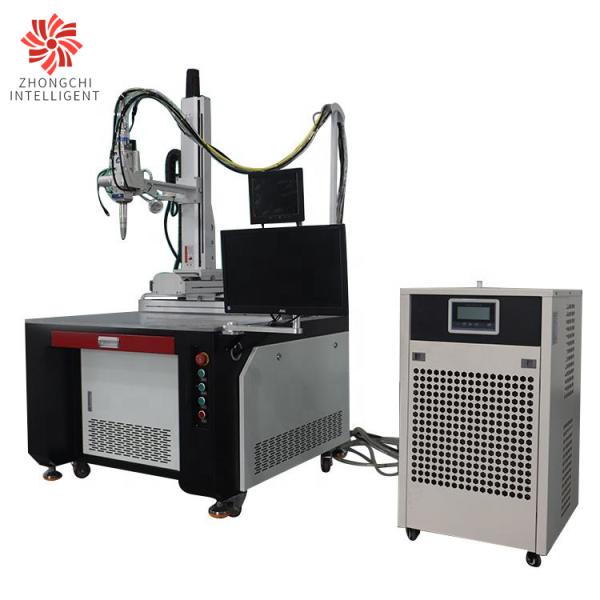

Automatic Laser Spot Welding Machine Precision Welding For Electronic Components Aluminum Laser Welding Machine
Description of Laser Spot Welding Machine
The fiber laser welding machine uses a continuous fiber laser to accurately control the width, energy, repetition frequency and other parameters of the laser pulse through digitalization to melt the workpiece and form a specific molten pool, thereby realizing laser welding of the workpiece.
Two-axis, three-axis or four-axis linkage can be selected, static or oscillating welding head is used, and the teaching function is used to edit the welding seam to realize automatic welding. The consumables of the whole machine are only the protective lens of the welding gun, and the life of the fiber laser is up to 100,000 hours. The X-Y-Z motion axis superposition method is optional.
Specifications of Laser Spot Welding Machine
| Laser Model | LPL-MP70W丨LPL-MP120W丨LPL-MP150W |
| Power | 70W/120W/150W (Optional) |
| Laser Wavelength | 1070nm/1064nm |
| Working Mode | Pulse or Continuous |
| Pulse Width | 2-500ns/10-350ns |
| Pulse Power | ≤1.5MJ |
| Cooling Mode | Air Cooling |
| Environment Temperture | 0-40°C |
| Power Requirement | 220V±5% 50Hz |
| Max Frequency | 40-2000KHz |
| Fiber Length | 3M |
| Power Regulation | 0~100% |
Features and Benefits of Laser Spot Welding Machine
1. The photoelectric conversion efficiency is as high as 25-30%, and the total power consumption is low.
2. The life of the laser is up to 100,000 hours, and the laser does not need maintenance.
3. Excellent pulse power and energy stability.
4. Laser welding has a high aspect ratio and a small amount of deformation.
5. Compared with robot welding, the cost is lower and the programming is simpler.
6. Using professional fixtures, workers can automatically weld as long as they simply load and unload.
7. Efficient and stable maintenance-free, can work 24 hours a day.
8. The laser power is optional, and the use cost is low.
9. The travel of the motion axis is optional, and the size of the platform is optional.
Applications of Laser Spot Welding Machine
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
